Baxi Gas Fired Boiler Error Codes

Advertisements


1. If a fault occurs on the boiler an error code may be shown on the facia display.

2. The codes are either two or three digit, preceded by the letter ‘E’. For example, code E133 will be displayed by ‘E1′ alternating with ’33’. E50 is shown as ‘E’ then ’50’.
3. E20, E28, E50, E125 & E160 indicate faulty components. You should make a note of the displayed error code and contact your installer or service engineer.
4. If E110 or E130 is displayed overheat of the primary water or flue system has occurred. Turn the selector switch to the reset position and hold for at least 5 seconds. If the boiler does not relight, or the code is displayed regularly contact your installer or service engineer.
5. E119 is displayed when the primary water pressure is less than 0.5 bar. After repressurising the system the boiler should operate. Your installer will be able to advise you about the method of repressurising. See page 6 for further details.
6. E133 indicates that the gas supply has been interrupted, ignition has failed or the flame has not been detected. Ensure that the gas supply has not been turned off, and turn the selector switch to the reset position and hold for at least 5 seconds. If the boiler does not relight, or the code is displayed regularly contact your installer or service engineer.



Advertisements

Advertisements

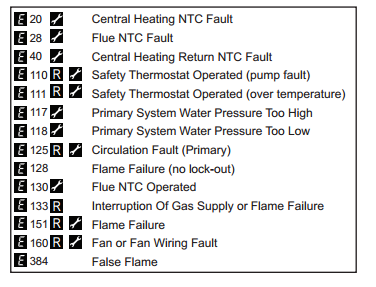

E20-E28-E50-E110-E119-E125-E130-E133-E160

E20-E28-E50-E110-E119-E125-E130-E133-E160

E20-E28-E40-E110-E111-E118-E125-E128-E130-E133-E151-E160-E384

E20-E28-E40-E110-E111-E118-E125-E128-E130-E133-E151-E160-E384
