Samsung Mini Dvm Error Codes

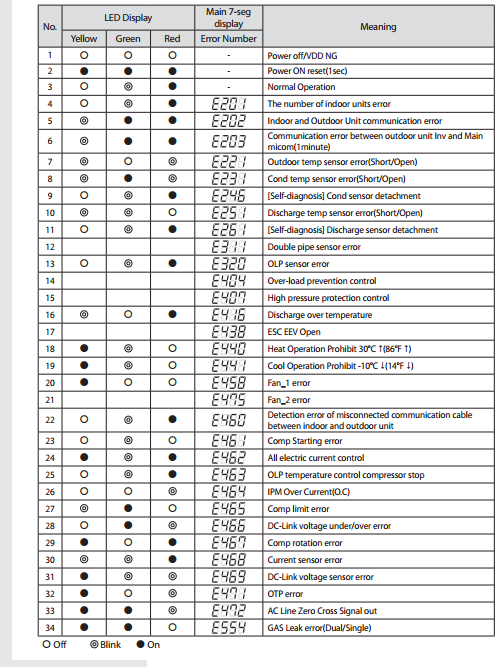

The table below give indication about self diagnostic routine. Some of error code requires activities exclusively  for Authorized Service Center.

Outdoor Unit

If an error occurs during the operation, it is displayed on the outdoor unit PCB LED, both MAIN PCB and INVERTER PCB.

E201-E202-E203-E221-E231-E246-E251-E2961-E311-E320-E404-E407-E416-E438-E440-E441-E458-E475-E460-E461-E462-E463-E464-E465-E466-E467-E468-E469-E471-E472-E554

E201-E202-E203-E221-E231-E246-E251-E2961-E311-E320-E404-E407-E416-E438-E440-E441-E458-E475-E460-E461-E462-E463-E464-E465-E466-E467-E468-E469-E471-E472-E554







Safety Precautions

R410a refrigerant is used for Super FJM air conditioner.

– When using R410a, moisture or foreign substances may affect to the capacity and reliability of

the product. Safety precautions must be taken when installing the refrigerant pipe.

– The design pressure of the unit is 4.1MPa(594.6psi). Select appropriate material and thickness

according to the regulations.

– R410a is a quasi-azeotrope of two refrigerants.

Make sure to charge liquid one when adding refrigerant.

If you charge gaseous refrigerant, it may affect the capacity and reliability of the product as

a result of change formation of the refrigerant.



Samsung Mini Dvm MANUAL
